OPGW Wire Mesh Socks

  • OPGW Wire Mesh Socks
  • OPGW Wire Mesh Socks
  • OPGW Wire Mesh Socks
  • OPGW Wire Mesh Socks

OPGW Wire Mesh Socks

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 5 Days
    Packaging: Wooden Box or Paper Box
    Productivity: 50 Pieces/Day
    Brand: Qianyuan
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 50 Pieces/Day
    Certificate: ISO9001 and Test Certed By China National Institute
    HS Code: 3926909090
    Port: Shanghai,Ningbo,Guangzhou

Basic Info

Model No.: Ф11-15mm

Product Description

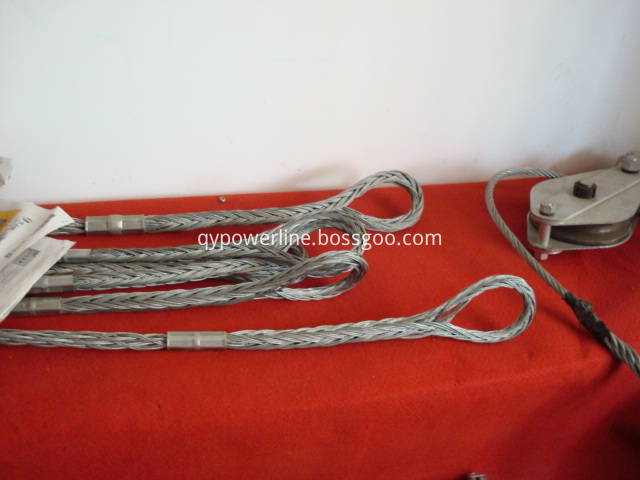

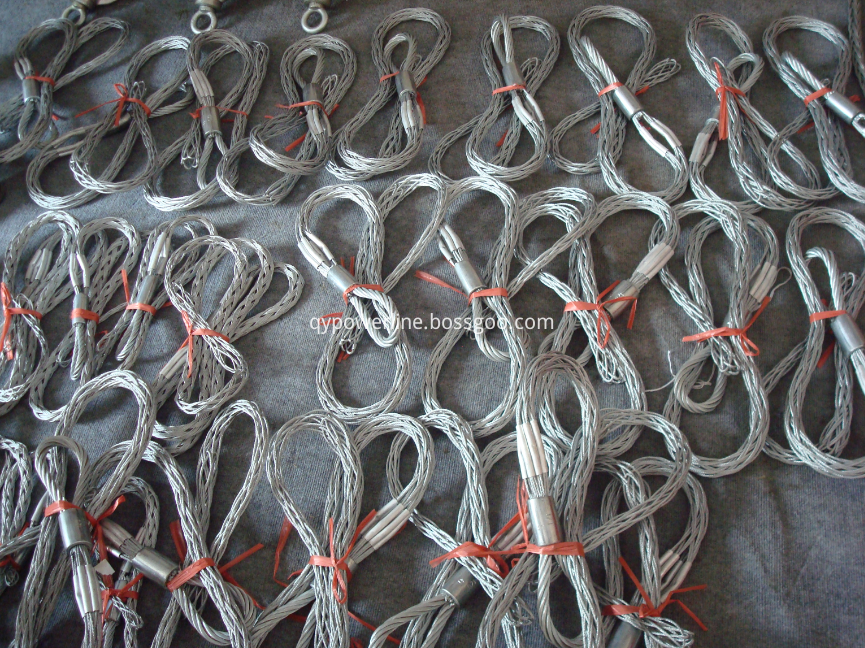

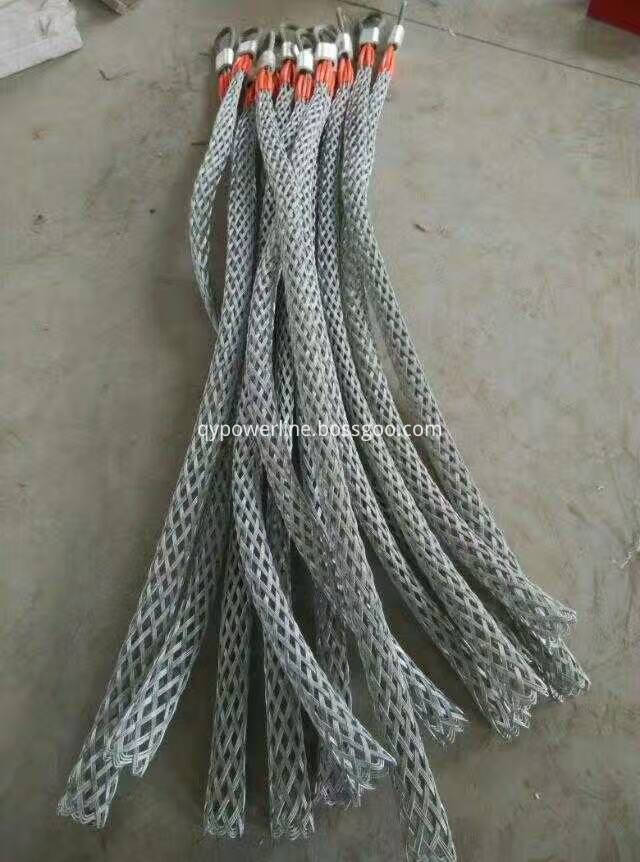

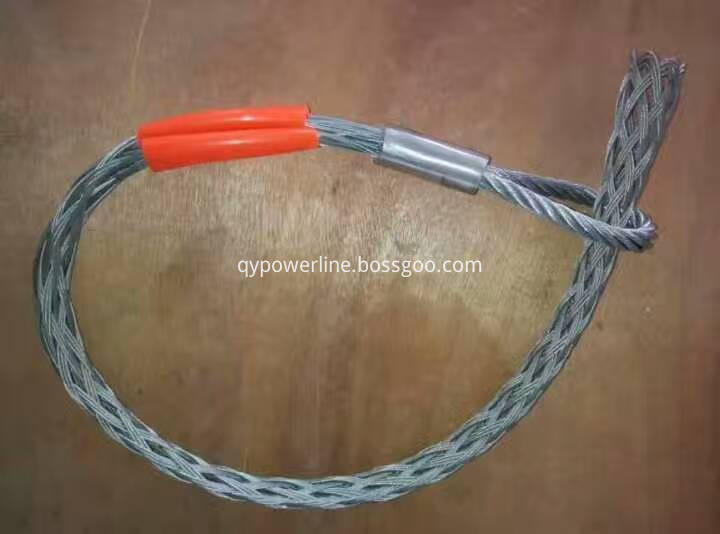

OPGW wire mesh socks

wire mesh grips, pulling socks, cable stockings

Single Eye pulling socks - cable socks ideal for pulling medium to heavy loads, the cable pull can only be achieved from the cable end.

Double Eye pulling socks - cable socks suitable for pulling medium to heavy loads, the main advantage compared to the single eye cable sock is that the cable can be passed through the sock thus enabling the cable pull to be made at various stages down the cable.

Lace-Up cable stockings - similar to double eye cable stockings but the sock is positioned on the cable then stitched together, this is particularly useful when the cable pull is somewhere down the cable or when there is a connector on the cable end.

Open Ended cable stockings - ideal for jointing 2 cables and mainly used by cable pulling contractors when an old cable is being replaced with new.

Non-Conductive Cable Socks - pulling socks for use in water, Fiber Optic, offshore or LV-HV cable laying projects.

Uses: used to drag, install and hold tight the OPGW (optical) cable.

Product No.

Model

Rated Load

(KN)

Suitable

OPGW

Ф(mm)

Weight

(Kg)

10449

GL-1

10

7-11

0.4

10450

GL-2

15

11-15

0.6

10451

GL-3

20

15-17

0.8

10452

GL-4

25

17-22

1.1

wire mesh gripsConductor Pulling Sock Gripscable stockingsCable Pulling Sock Grips pulling socks


Yangzhou Qianyuan Electric Equipment Manufacturing & Trade Co.Ltd



Yangzhou Qianyuan Electric Equipment Manufacturing & Trade Co. Ltd was established in 2017(former Yangzhou Xiyi Power., Ltd which is established in 2008), and is located in Yangzhou city, Jiangsu province. The company is specialized in manufacturing and trade of electric power line transmission tools. Our main products are Anti twist Wire Rope, Stringing Roller, Hydraulic Crimping Tools, Engine Powered Winch, Wire Grip, Gin Pole, Hydraulic Reel Jacks, Mesh Sock Grips, cable Conveyor, Lever Chain Hoists and so on, which are mainly supplied to power companies, railroad companies and other industry fields.

Qianyuan always considers the viewpoints and demands of customers while we are developing new products. We have a very strict quality control system, for that our products have already been used by the whole country extensively. According to the actual application within the scope of local electric power system for several years, the electric power equipment of Qianyuan has been confirmed by high efficiency, convenient maintenance and good after-sale service. We really hope to develop friendships and do business with all friends for mutual benefit from all over the world to make an effort for both progresses in the fierce competitive world.

Our main products are as follows:

1. Anti Twist Wire Rope

Anti-Twisting Steel Wire Rope

Anti-Twisting Pilot Wire


2. Hydraulic Crimping Tools

75872cbc3e33dca581de68499b

764188b2840bc99f51f930eaa0



3. Stringing Roller

89e15f8f5e7e777df0ed2413e9

bdfa0979d232e776e886897a5f


4. Engine Powered Winch

04f5470097e2ef2b348f10f82d

34a8e3ee4378d90b6cbeb9bad3


5. Come Along Clamp

59f1e83fbcb936a8b29f33f8a4

ba81b731040f01176cf818b17a


6. Cable Conveyor

db4fb198fa7b1a78d91c1989f6

cable blowing machine cable winch
